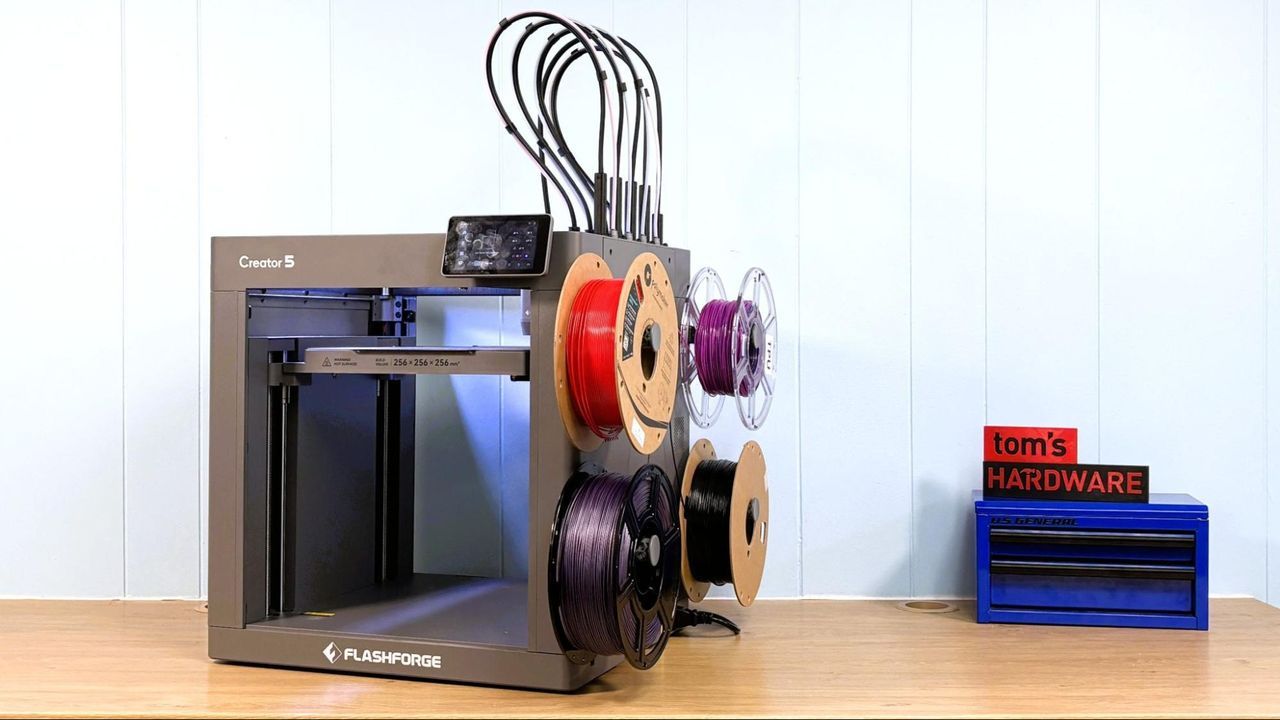

Affordable tool changer for Flashforge Creator 5 review

When you’re looking to expand your 3D printing capabilities without breaking the bank, finding a flexible tool changer can feel like hitting a jackpot. Enter the Flashforge Creator 5, a machine positioned as the best budget option currently available. While other specialized options exist, this system offers serious flexibility for users who want to juggle multiple filaments efficiently.

Priced aggressively at $699 after a substantial discount, the Creator 5 delivers an open-frame Core XY machine with a generous 256 mm cubed build volume. It comes equipped with four speedy toolheads, ensuring that filament doesn’t sit idle while you switch between colors.

But is this machine just a flashy piece of kit, or does it deliver on the promise? Like any budget powerhouse, the Creator 5 has some quirks. When loading material, it tends to purge an astonishing amount of filament, and setting up the prime block requires more attention than you might expect. This often stems from the fact that the pre-set filament profiles are tailored specifically for Flashforge materials, meaning users often have to manually adjust settings if they want optimal results with other brands.

Despite these details, the machine handles high temperatures effectively, which is a significant advantage when working with materials like PETG. It functions perfectly well on its open frame, though it’s important to note that this design prioritizes cost savings over enclosed performance. There is no direct upgrade path to an enclosed version with added cooling fans, meaning users must adapt their printing environment.

In terms of materials, the Creator 5 excels at standard filaments like PLA, PETG, and TPU, operating temperatures up to 320°C. While it’s designed for simplicity and cost-effectiveness, its open structure limits performance enhancements compared to fully enclosed systems that offer superior thermal management.

The design is mechanical and straightforward. The X and Y axes run on robust 8mm belts with linear rails, while the Z-axis utilizes three linear rods driven by lead screws. The tool head carriage system uses a clever mechanical alignment method—magnets and pins—instead of more complex motorized latching pins, offering a reliable if decidedly manual process for swapping nozzles.

The process of getting started is also manageable. The machine comes mostly assembled, including all the necessary spoolholders and tools. While the software ecosystem requires diving into Flash Studio (based on Orca Slicer), which links up via LAN or cloud modes, the process is accessible. Calibration is a detailed 40-minute affair, setting the Z offset and leveling the bed while compensating for vibration.

Experimenting with diverse materials was key to understanding its limits. Testing with TPU proved challenging; softer filaments like FiberFlex 40D sometimes caused extrusion issues, requiring careful adjustments to layer height and speed. However, when experimenting with PETG, users found satisfying results, achieving clean print-in-place joints on models like the Fidget Grabber.

The bottom line is that the Flashforge Creator 5 is a fantastic tool changer if your primary goal is flexibility and budget. It’s an excellent choice for workshop environments where you need to handle multiple materials, but be prepared to manage the material purge and utilize its open-frame design effectively.
