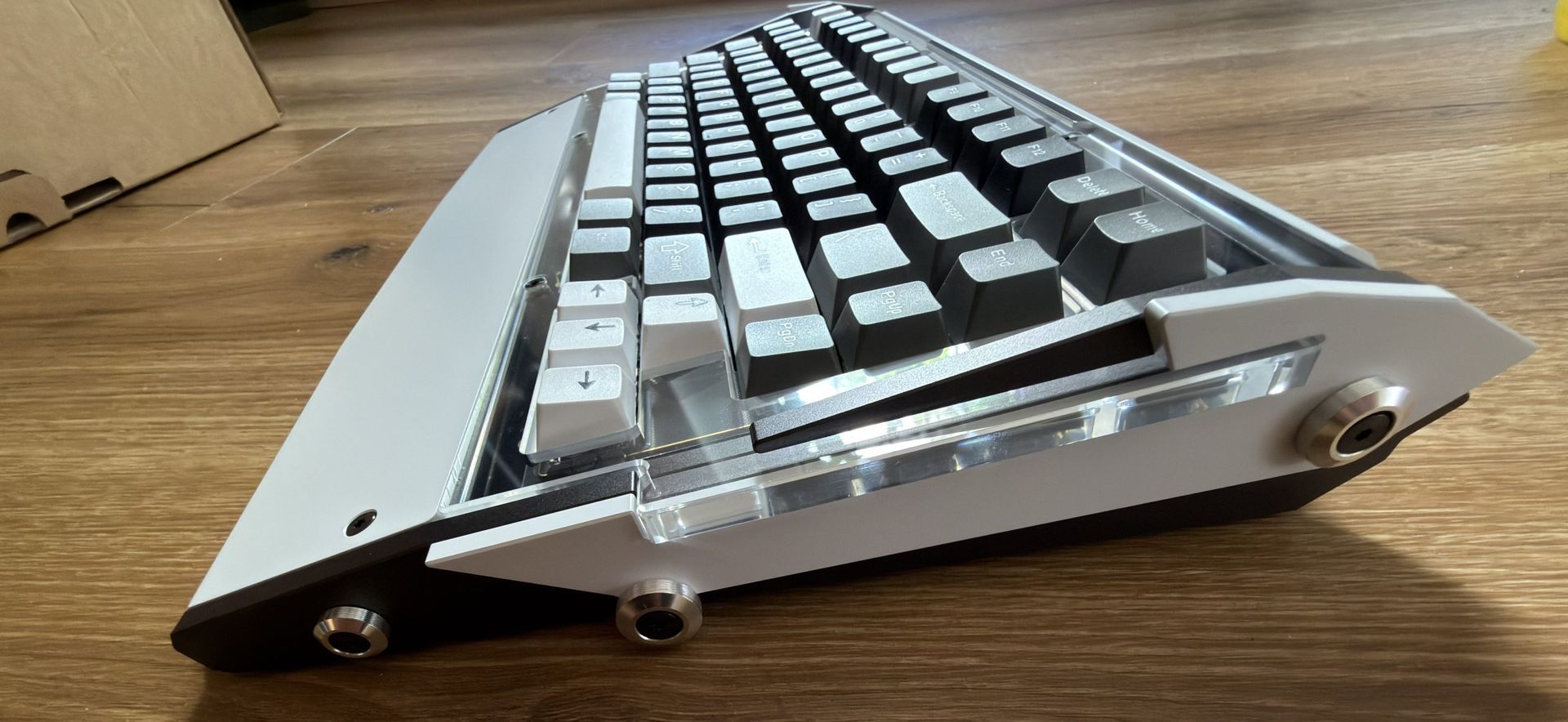

Angry Miao Black Diamond 75 V2 Supercar Custom Keyboard Test

Based on the provided text, here is a summary and extraction of the key details regarding the Black Diamond 75 V2 mechanical keyboard review:

—

Black Diamond 75 V2 Keyboard Review Summary

The review focuses on the Black Diamond 75 V2, highlighting its exceptional design, high build quality, feature set, and excellent performance metrics. The reviewer finds the keyboard to be a highly attractive option for users seeking a premium, customizable, and functional mechanical keyboard.

⚙️ Hardware & Build Quality

Stabilizers: Uses standard Gateron screw-in stabilizers, which are pre-lubricated for smooth operation.
Switches: Features MX-compatible hot-swap sockets. The installed switches are DR Rapid Ice Gaming Switches, which were verified to be properly lubricated.
Keycaps: High-quality double-shot PBT material, which ensures legends do not wear off and offers better resistance to shine than ABS plastic.
Case & Weight: Features a massive aluminum case, resulting in significant weight (approximately 2.8 kg for the carbon version or 3.0 kg for the Mithril version), which contributes to a premium feel and stable desk placement.

🔌 Connectivity & Power

Connectivity: Supports multiple options: USB-C, Bluetooth 5.1, and a fast 2.4 GHz wireless connection.
Battery: Equipped with a 5,000 mAh lithium-polymer battery, offering up to 75 days of runtime (without RGB).
Charging: The Advance version supports convenient wireless Qi charging.

✨ Features & Customization

RGB Lighting: Fully customizable RGB lighting that can be managed through the manufacturer software.
Customization Software (Dry Studio / AM Master): Provides comprehensive control over all aspects of the keyboard:
Individual key assignments and macro creation.
Custom RGB effects, colors, brightness, and speed.
Firmware management for updates.
The software is described as intuitive and mature.
Keymap Customization: Allows for setting up different seven layers of functions, including multi-function keys (Press & Hold) and custom macros.
Unique Feature: The fully integrated Qi charging function on the underside of the keyboard is noted as a standout feature combining design and function.

📊 Performance & Audio Testing

Latency Measurement (Wired): Average end-to-end latency was 13.2 ms. This result was highly consistent, positioning the USB-C wired connection as having the lowest and most stable input latency.
Latency Measurement (Wireless – 2.4 GHz): Average end-to-end latency was 16.8 ms. While slightly higher than wired, this performance was deemed fully sufficient for normal use and gaming.
Acoustics: The overall sound quality is rated as very well done, with the spacebar being particularly pleasant out of the box. The reviewer suggests that foam does not need to be used for proper tuning.

🌟 Conclusion & Value Proposition

The reviewer strongly recommends the Black Diamond 75 V2, emphasizing that it excels not only in functionality but also in extraordinary design and build quality.

Overall Impression: A very positive impression based on its premium aesthetic, high build quality (aluminum case), pleasant acoustics, and advanced technical features.
Value: The keyboard is considered extremely attractive, priced at $249 USD (plus tax), compared to the standard $350 USD price point, making it an excellent choice for those prioritizing design without compromising on quality.

—

📝 Key Specifications Extracted:
