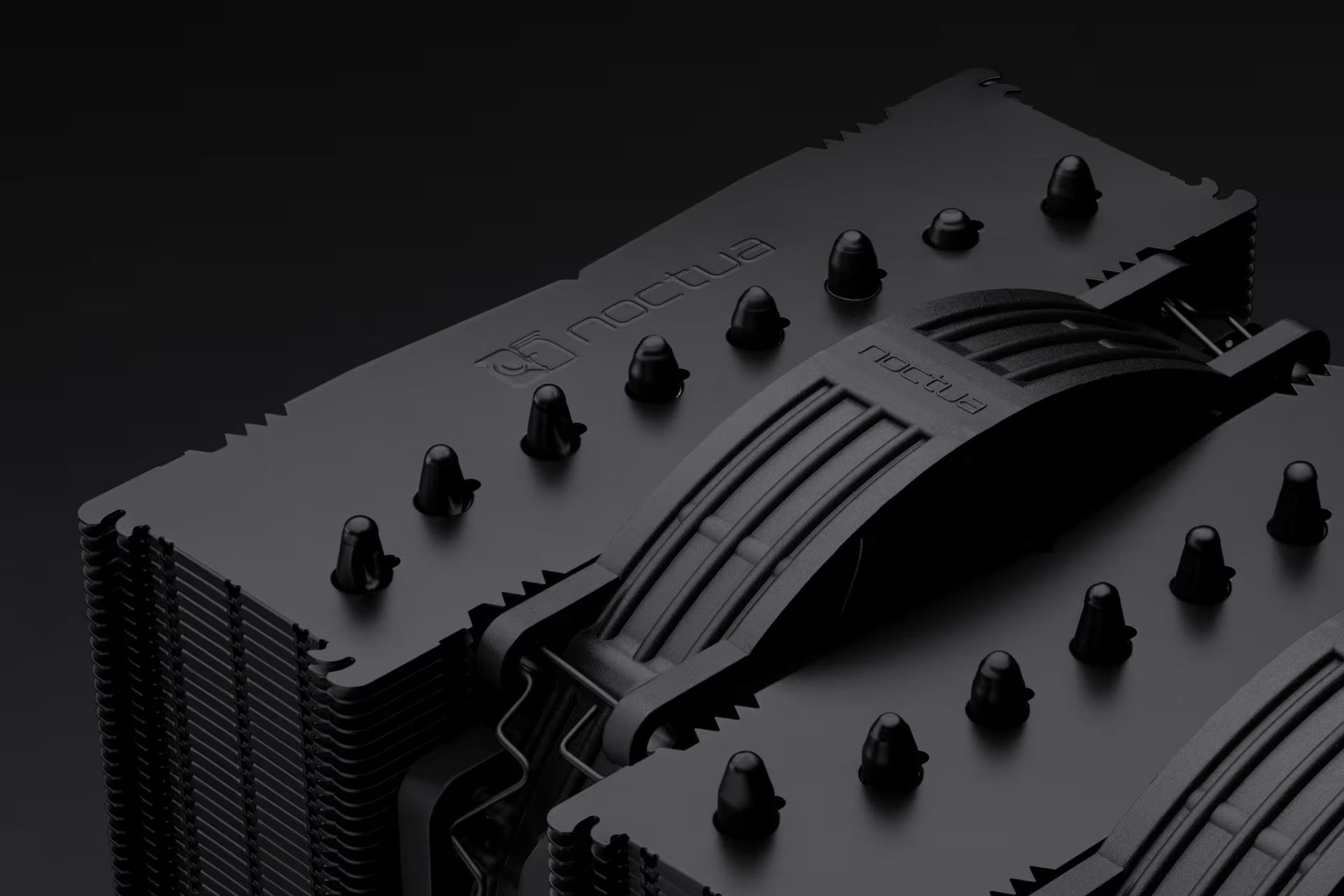

Noctua NH-D15 G2 Cooler Review: The Return of the King

This text is a detailed technical review of the Noctua NH-D15 G2 chromax.black air cooler, focusing heavily on its design philosophy, fan performance, thermal efficiency, and noise levels under load.

Here is a structured summary of the key points:

1. Design Philosophy & Construction

Optimization over Spectacle: Noctua’s approach is characterized by optimizing numerous small technical details rather than relying on spectacular design features to increase performance.
Base Plate Refinement: The base plate is made of high-purity, nickel-plated copper and has been deliberately revised in geometry (using HBC/LBC variants) to optimize contact pressure with modern processor dies and effectively channel heat into the eight heatpipes.
Workmanship: The overall workmanship is praised for its high quality, with even plating and clean transitions, conveying a premium feel.

2. Cooling System Components (The Fans)

Fans Used: Two NF-A14x25r G2 PWM chromax.black fans are used, specifically developed for dual-tower coolers.
Airflow Focus: The fan design features a round frame optimized to match the cooler’s fin structure, aiming for the most even airflow.
Acoustic Balancing: Noctua employs a speed-offset configuration, where the two fans run at slightly different speeds, which minimizes resonance and beating effects, leading to a more harmonious sound profile.
Efficiency: The impeller geometry and small clearances are designed to increase efficiency while reducing air turbulence.

3. Performance and Noise Testing Methodology

The review tests the cooler under various thermal loads (100W, 150W, 200W) using an AMD Ryzen 9 7900X on an ASUS ROG platform, measuring performance without case ventilation to isolate the cooler’s effectiveness.

Noise-Normalized Performance: The testing focuses on how well the cooler performs at realistic noise levels.
At a loudness normalized to 40 dB(A) (which corresponds to about 92% PWM fan speed), the cooler demonstrates strong performance.
Even under this moderate acoustic level, the cooler maintains highly stable temperature curves, indicating excellent heat transfer.
Thermal Stability: The system shows remarkable consistency:
At 100W, a delta temperature of $\approx 25.3 \text{ Kelvin}$ was reached.
At 200W, the cooler maintained an average delta of $64.1 \text{ Kelvin}$, showing no signs of thermal saturation or noticeable spikes under sustained high load.

4. Conclusion

The review concludes that the Noctua NH-D15 G2 chromax.black is one of the strongest air coolers available by successfully balancing performance and acoustics.

Key Strength: It achieves near-maximum cooling potential even at moderate fan speeds, meaning users don’t need to run the fans at their absolute limit for excellent thermal performance.
Overall Verdict: The cooler excels in consistent cooling performance, stable temperature behavior, and a comparatively low noise emission, making it an excellent choice in the high-end air-cooling segment.

5. Final Considerations (Drawbacks)

The review notes standard drawbacks associated with this class of cooler:
Size: The large size ($168 \text{ mm}$ height and over $1.5 \text{ kg}$ weight) requires sufficient case space.
Compatibility Note: Tall RAM modules can still affect the position of the front fan, emphasizing the need for careful case planning.
