600C Transistor Breakthrough: Fixing leakage and drift

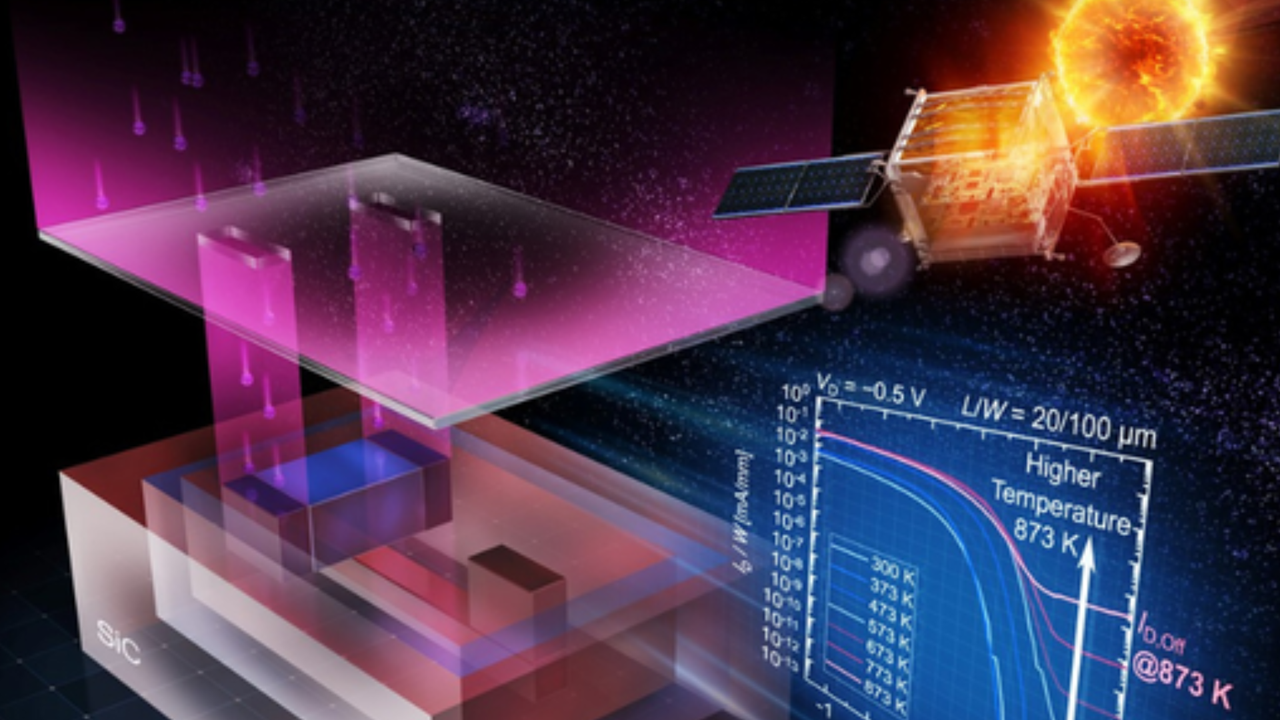

Imagine a world where electronics don’t just survive heat, but thrive in it. A team of researchers at Kyoto University has just demonstrated a monumental leap in semiconductor technology, crafting a silicon carbide (SiC) transistor capable of operating reliably at scorching temperatures of 600°C (873 K).
This isn’t just theoretical; it’s a practical breakthrough achieved through clever material engineering. By utilizing ion implantation—a standard, mass-production technique used across commercial chip fabrication—the team managed to refine the properties of SiC. The real genius lies in how they managed the electrical stability: they successfully narrowed the gap between the designed and measured threshold voltage to under 0.1V at 400°C, a staggering improvement from the conventional layout, which struggled with threshold voltages exceeding 2V.
The secret to this thermal resilience lies in a novel transistor layout. The researchers paired a bottom-gate transistor with a double-well isolation structure. This architecture addresses a critical issue: as silicon components begin to fail above 250°C, the semi-insulating substrate loses its insulating properties, allowing leakage current to flood the wafer. By isolating each device within a pn junction, the structure effectively prevents this thermal bleed, ensuring stability even under extreme heat.
Further enhancing this stability, the bottom-gate design captures the dopants that typically scatter too deeply during implantation—a phenomenon known as the channeling effect. By compensating for this effect, the team stabilized the junction field-effect transistor, proving that advanced layout design can successfully mitigate the physical limitations imposed by high temperatures.
This achievement places the Kyoto research at the cutting edge of extreme-environment electronics. While SiC is already scaling rapidly as a material for power devices, logic circuits designed for high temperatures remain a challenging niche. This work directly addresses the need for robust components in fields that demand extreme heat tolerance, such as gas turbines or missions to the Venusian atmosphere.
The implications extend beyond simple material resistance. The transistor developed is naturally “normally-on,” meaning it draws no standby power when idle. This characteristic is highly desirable for building efficient logic circuits, which require complementary pairs of “normally-off” devices. The Kyoto group has already demonstrated complementary SiC JFET logic gates at 350°C, pushing the field toward the next generation of low-power, high-temperature computing.
Although the foundational work is remarkable, the journey to full commercialization requires further focus. The next major hurdles involve ensuring long-duration reliability and developing heat-tolerant packaging solutions. With these challenges addressed, this research could unlock the potential for electronics that are not only powerful but also virtually indestructible in the hottest environments on Earth and beyond.
