Best 2TB 2230 SSD for Steam Deck

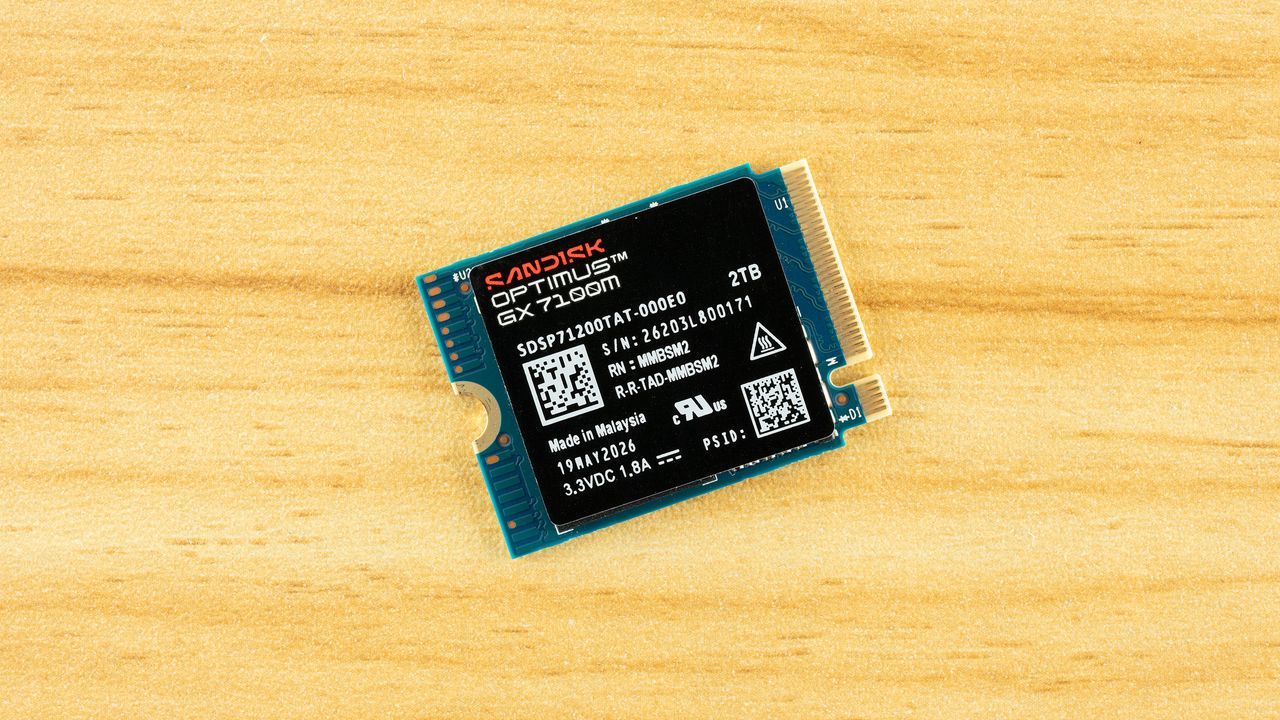

This text provides an in-depth performance and thermal analysis of the Sandisk Optimus GX 7100M, positioning it against competitors like the WD Black SN7100, particularly within the constraints of a small M.2 2230 form factor.

Here is a structured summary and analysis of the key findings:

—

1. Sustained Write Performance and Cache Dynamics

The text emphasizes that raw sequential write speeds are only part of the story; the behavior of SSDs when under sustained load—specifically how they manage their internal write cache—is crucial for real-world performance consistency.

Write Cache Behavior

Caching Mechanism: Modern SSDs use a fast area of pseudo-SLC (single-bit) programmed flash as a write cache to absorb incoming data quickly.
Performance Degradation: Sustained write speeds can suffer significantly once the workload exceeds the cache capacity and spills into the “native” TLC or QLC flash.
Cache Recovery (“Folding”): When the drive runs out of space, it must execute a process called “folding,” where data is migrated from the fast cache back to the slower native flash. This folding process causes significant performance dips and decreases consistency and responsiveness.

Performance Measurements (7100M)

Testing with Iometer measured the impact of cache saturation over 15 minutes, observing these different states:
Saturated Cache State: The drive initially demonstrates very high speed (over 6.4 GB/s for 110 seconds), implying a substantial cache size (~708GB).
Folding Mode Oscillation: When the drive enters the folding state, performance becomes inconsistent. It shows a peak of around 1,450 MB/s (about half the cached speed) before settling into an average rate of approximately 894 MB/s.

Cache Size Impact

The size of the write cache significantly affects performance stability. A larger cache can handle larger bursts but may leave the drive more vulnerable in some scenarios, whereas a smaller cache might yield more consistent results.
Proprietary solutions (like Samsung’s TurboWrite or WD/SanDisk’s nCache) manage both static and dynamic portions of this cache simultaneously.

—

2. Power Consumption and Thermal Management

The analysis shifts to the efficiency and heat output of the drive, which is critical for portable devices like laptops.

Power Efficiency

Efficiency Focus: The review stresses performance-per-watt as the most important metric over raw power consumption.
7100M Rating: The Sandisk 7100M is highlighted as being the most power-efficient drive tested and the most efficient M.2 2230 SSD reviewed.
Benchmark: The review suggests that efficiency in this segment should ideally be above 500 MB/s per watt, noting that reaching P310 or NV3 range is better.

Temperature Concerns

Measured Temperatures: Peak temperatures recorded were 73°C, 76°C, and 85°C. The drive’s maximum throttling temperature is set at 94°C.
Form Factor Limitation: The primary source of heat concern stems from fitting high performance into a tight M.2 2230 package, especially in portable devices where cooling is limited.
Overall Assessment: While the temperatures are high, the review notes that this result is often compounded by external factors (like poor chassis cooling) and workload limitations (e.g., running older PCIe modes), rather than a fundamental flaw in the SSD itself.

—

3. Sandisk Optimus GX 7100M Bottom Line

The overall conclusion positions the 7100M as an excellent choice, especially for users prioritizing portability and efficiency.

Successor Status: It is lauded as a fantastic successor to the WD Black SN770, offering class-leading random read performance and power efficiency in the compact M.2 2230 form factor.
Strengths: Excellent real-world performance, superior power efficiency, and robust software support (especially for Windows users). It is highly recommended as a solid investment.
Trade-offs: Potential inconsistencies in sustained write performance during heavy caching/folding operations and heat output in extremely tight enclosures must be acknowledged.
Final Verdict: For an enthusiast seeking the best M.2 2230 experience, the 7100M offers fantastic value, provided users are aware of the thermal realities associated with high-performance SSDs in portable devices.
